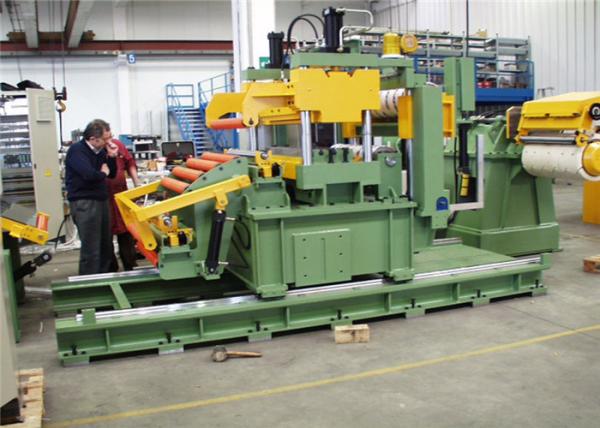

Light Gauge Steel Cut To Length Machine Coil thickness 0.1mm-4mm
Line speed 0-60 m/min
Cut To Length line is a high efficient metal processing production
line for cutting metal flat sheet from metal coils. The metal coils
unwind, leveled, cut to length and blanking. RISHBIN supply full
range of cut to length line according to client’s special
requirement by combining different component. Every CTL line is
engineered and constructed differently for customers, it is
customized designed and built, it is considered when choosing a
right CTL line about some specifics like production capacity,
running speed, material thickness and width, etc. Quality and
standard checks are strictly performed on our product before
releasing to our valued customers.
Available raw material for cut to length line is hot rolled steel,
cold rolled steel, galvanized steel, pre-painted steel, high
tensile steel, stainless steel, aluminum, copper, alloys.
Main Technical Parameters of Light Gauge Cut To Length Lines
1. Coil properties: δs≤550MPa, δb≤600MPa
2. Coil thickness: 0.1mm-4mm
3. Coil width: Max. 1800mm
4. Coil I.D: 508 mm
5. Coil O.D: Max. 2000 mm
6. Coil weight: 25000 kg
7. Line speed: 0-60 m/min
8. Leveler shaft diameter: 65 mm
9. Cutting length: 300-6000 mm
10. Cutting rate: 15 pieces/min
11. Length tolerance: ±0.3 mm
12. Diagonal tolerance: ±0.5 mm
13. Straightening tolerance: ±1 mm/m2
14. Total power: about 120 KW
15. Total weight: about 50 T
RISHBIN light gauge automatic cut to length machines are built for
speed and ease of use and can produce higher line speeds without
experiencing material slippage. Light gauge lines are also capable
of processing surface critical material without marking.
Cut-To-Length Line and Blanking Line will make your job easier, cut
costs, and increase your profits.
The cut to length machine for sale on Rishbin can be supplied with
start-stop shears, flying shears, rotating shears or continuous
direct feed. High-precision levelers of four, five and six heights,
computer controlled. Edge trimming may be incorporated.
Here is working process:
Steel coils are transferred by an entry coil car and loaded onto an
uncoiler. From uncoiler the strip proceeds through a five-high
precision leveler designed to level steel within the desired
material gauge range and yield strength. The strip then proceeds
through a squaring unit and precision roll-feed unit to the high
speed shear, where it is cut to required length. The cut sheet then
moves to float sheet stacker where it is stacked on a pallet and is
then moved onto the semiautomatic packaging line for wrapping.
| Model | RS-1.2 | RS-2.0 | RS-3.0 | RS-4.0 |
| Coil Material | δs≤230N/mm2,Cold-rolled Coil, Stainless Steel Coil, Galvanized Coil
,AL ,Copper |
| Coil Thickness | 0.11～1.2mm | 0.2～2.0mm | 0.3～3.0mm 0.5-4.0mm |
| Coil Width | 300～800mm | 800～1250mm | 800～1250/1600mm 800～1600/1800mm |
| Coil Weight | ≤10T | ≤20T | ≤20T(25T) ≤25T(30T) |
| Coil I.D | ф508mm | ф508mm | ф508&ф610mm ф508& ф610mm |
| Coil O.D | ≤ф1800mm | ≤ф1800mm | ≤ф2000mm ≤ф2000mm |
| Cutting Range | 300～3000mm | 300～4000mm | 300～4000mm 300～4000mm |
| Cutting Accuracy | ±0.3mm | ±0.3mm | ±0.5mm ±0.5mm |
| Roller Diameter | ф65(50) | ф65(50) | Ф 85(65) Ф 100(80) |
| Linear Speed | 0～60m/min | 0～60m/min | 0～60m/min 0～60m/min |
| Control System | PLC Automatic control | PLC Automatic control | PLC Automatic control PLC Automatic control |
