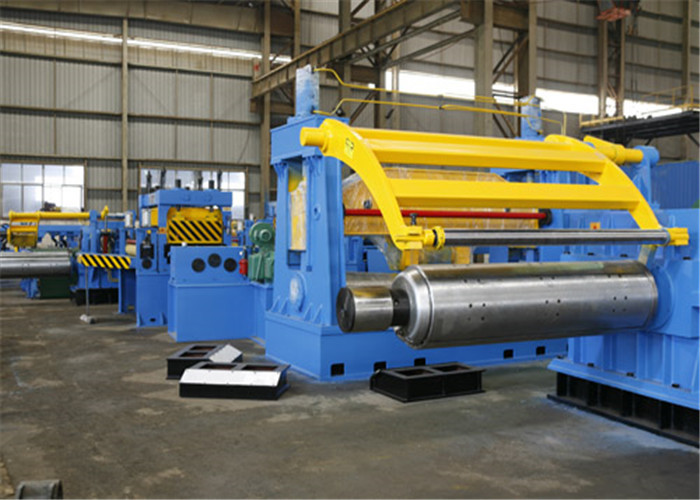

Automatic Aluminum Slitter Machine Coil Thickness 0.8-4.0mm Ф220 Mm Knife Pivot Diameter

    Buy cheap Automatic Aluminum Slitter Machine Coil Thickness 0.8-4.0mm Ф220 Mm Knife Pivot Diameter from wholesalers

    Buy cheap Automatic Aluminum Slitter Machine Coil Thickness 0.8-4.0mm Ф220 Mm Knife Pivot Diameter from wholesalers
    • Buy cheap Automatic Aluminum Slitter Machine Coil Thickness 0.8-4.0mm Ф220 Mm Knife Pivot Diameter from wholesalers
    • Buy cheap Automatic Aluminum Slitter Machine Coil Thickness 0.8-4.0mm Ф220 Mm Knife Pivot Diameter from wholesalers

    Automatic Aluminum Slitter Machine Coil Thickness 0.8-4.0mm Ф220 Mm Knife Pivot Diameter

    Ask Lasest Price
    Model Number : RS0.8-4.0
    Brand Name : RISHBIN
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    • Product Details
    • Company Profile

    Automatic Aluminum Slitter Machine Coil Thickness 0.8-4.0mm Ф220 Mm Knife Pivot Diameter

    RS0.8-4.0 Light Gauge Aluminum Slitter Machine Coil Thickness 0.8-4.0mm Accuracy ±0.25mm

    Aluminum Slitter Machine​ Working procedure

    In the beginning, the coil is loaded on the coil car by crane and brought to the uncoiler by operating the coil car. Coil car centralizes the coil with the uncoiler mandrel and the coil is mounted on the uncoiler. Mandrel is expanded. Snubber roll rotates the coil. Peeler breaks the straps and brings the pre end upto Pinch roll. The Pinch roll drives the coil end upto the slitter. Then its drive is disconnected. Slitter moves the slitted strips further. Slitted strips are threaded through loop table and drag tensioner into the recoiler drum. Recoiler winds one turn on loose coil.
    Then drag tensioner and loop are put into operation. Slitter and recoiler run simultaneously in synchronization. As the coil build up, the recoiler rpm correspondingly goes down to keep desired constant line speed. This process goes on until the end of coil on uncoiler. The slitted coil is pushed on the exit coil car through a pusher plate operated by hydraulic cylinder. The side slitted scrap is wound on the scrap winder units provided on both sides of the slitter.

    Aluminum Slitter Machine​ Brief Introduction

    Light Gauge Steel Slitting Line have strong power and versatility to be able to process heavier materials. We also have a continuous thickness measuring system to provide a greater strip quality. The design and the manufacture of slitting lines meet high standard of quality according to the market demand


    When you are running prepaint, galvanized, or hot roll material, RISHBIN produces a complete line of Coil Processing Equipment that offers practical solutions to meet today’s most demanding requirements.


    Our Cut-To-Length / Blanking Lines are packed with useful timesaving features that really make a difference. We offer a wide variety of options that allow you to custom configure a line to meet your specific requirements.

    To help you achieve your own production capacity target, RISHBIN Slitter supplies many options, such as high-speed slitting, medium speed slitting, sheet metal slitter machine, etc. All slitting line machines are easy to operate. They are very reliable, steady performers for both short and long terms running productions.
    • The thickness can range from the thinnest down to 0,10 mm, to the thickest up to 3 mm
    • Strip Width, from the narrowest 400 mm to the widest 2200 mm
    • Coils Weight, up to 30 tons
    • Line Speed, up to 300 m/min.
    • Operator Safety.
    • Highest Production Outcome
    • Ease of Operation and Maintenance

    Aluminum Slitter Machine Parameter
    Model No.RS0.2-1.8RS0.3-3.0RS0.8-4.0
    Coil MaterialCR Coils , HR Coils, S.S Steel Coils, GI Coils ,AL Coils, Copper Coils Picking Oil Coils
    Coil Thickness0.2~1.8mm0.3~3.0mm0.8~4.0mm
    Line Speed0~150/300m/min0~150/300m/min0-120/200m/min
    Coil Weight≤10T(15T)≤20T(25T)≤25T(30T)
    Coil I.Dφ508mmφ508mmφ508,φ610,φ760mm
    Coil O.D≤φ1600mm≤φ2000mm≤φ2000mm
    Strip Width≥15mm≥25mm≥25mm
    Number of Strip5~158~205~15
    Slitting Accuracy±0.1mm±0.15mm±0.25mm
    Blade shaftФ220mmФ240mmФ240mm
    Electrical Control SystemPLC Automatic controlPLC Automatic controlPLC Automatic control
