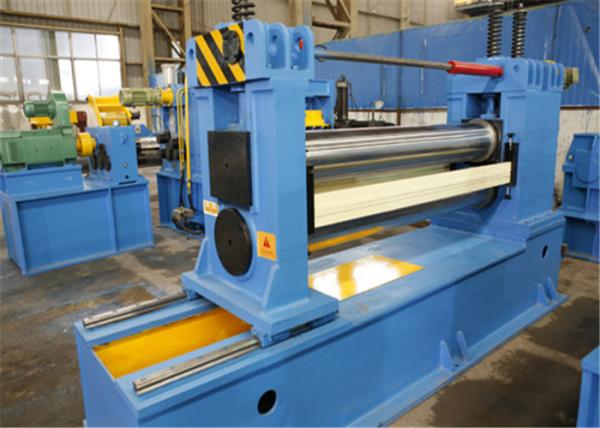

RS0.3-3.0 Light Gauge Aluminum Slitter Machine Coil Weight 25T
Thickness 0.3～3.0mm
Aluminum Slitter Machine Brief Introduction
PLC automatic controlling, VF speed adjusting, touch screen
operation
High quality alloy blade for precision working
International famous brand Electrical and Pneumatic elements.
- The thickness can range from the thinnest down to 0,10 mm, to the
thickest up to 3 mm
- Strip Width, from the narrowest 400 mm to the widest 2200 mm
- Coils Weight, up to 30 tons
- Line Speed, up to 300 m/min.
- Operator Safety.
- Highest Production Outcome
- Ease of Operation and Maintenance
RISHIBN provides decades of experience from numerous lines supplied
to well-known customers worldwide. Many years of experience in the
design, manufacture and commissioning sectors demonstrate our
expertise in supplying customer-oriented solutions.
- High availability
- Low operating costs
- High automation level to reduce non-productive times
- Flexibility from customer-specific arrangement and design
- Separate coil preparation system
- Side trimmers with center-cut shear
- Tool change turnstile to minimize the program change times
- Edge scrap shear with hydraulically operated knife heads in tapered
polygonal design for rapid knife head change
- High quality of the final product
Aluminum Slitter Machine Working procedure
In the beginning, the coil is loaded on the coil car by crane and
brought to the uncoiler by operating the coil car. Coil car
centralizes the coil with the uncoiler mandrel and the coil is
mounted on the uncoiler. Mandrel is expanded. Snubber roll rotates
the coil. Peeler breaks the straps and brings the pre end upto
Pinch roll. The Pinch roll drives the coil end upto the slitter.
Then its drive is disconnected. Slitter moves the slitted strips
further. Slitted strips are threaded through loop table and drag
tensioner into the recoiler drum. Recoiler winds one turn on loose
coil.
Then drag tensioner and loop are put into operation. Slitter and
recoiler run simultaneously in synchronization. As the coil build
up, the recoiler rpm correspondingly goes down to keep desired
constant line speed. This process goes on until the end of coil on
uncoiler. The slitted coil is pushed on the exit coil car through a
pusher plate operated by hydraulic cylinder. The side slitted scrap
is wound on the scrap winder units provided on both sides of the
slitter.
Aluminum Slitter Machine Specification
| Model No. | RS0.2-1.8 | RS0.3-3.0 | RS0.8-4.0 |
| Coil Material | CR Coils , HR Coils, S.S Steel Coils, GI Coils ,AL Coils, Copper
Coils Picking Oil Coils |
| Coil Thickness | 0.2～1.8mm | 0.3～3.0mm | 0.8～4.0mm |
| Line Speed | 0～150/300m/min | 0～150/300m/min | 0-120/200m/min |
| Coil Weight | ≤10T(15T) | ≤20T(25T) | ≤25T(30T) |
| Coil I.D | φ508mm | φ508mm | φ508,φ610,φ760mm |
| Coil O.D | ≤φ1600mm | ≤φ2000mm | ≤φ2000mm |
| Strip Width | ≥15mm | ≥25mm | ≥25mm |
| Number of Strip | 5～15 | 8～20 | 5～15 |
| Slitting Accuracy | ±0.1mm | ±0.15mm | ±0.25mm |
| Blade shaft | Ф220 | Ф240mm | Ф240mm |
| Electrical Control System | PLC Automatic control | PLC Automatic control | PLC Automatic control |
