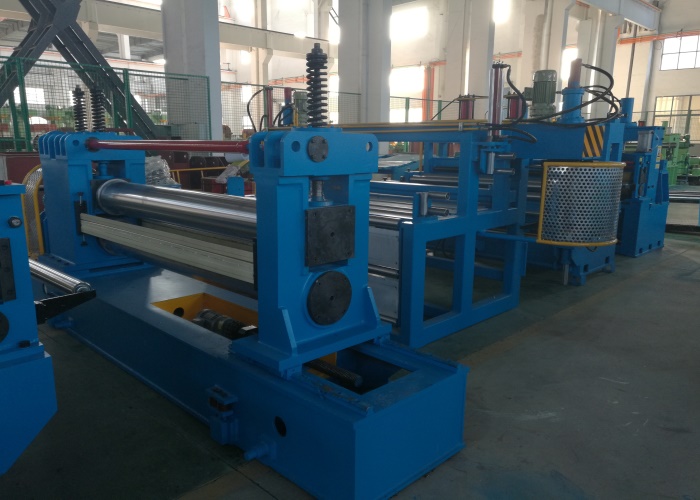

    Automation Rolled Steel Rolled Slitting Line Galvanized Steel High Speed

    RS0.8-4.0 Light Gauge Steel Slitting Line Coil Thickness 0.8-4.0mm Accuracy ±0.25mm

    Light Gauge Steel Slitting Line Brief Introduction

    Without a tension stand, the slit material from the center of the master coil would take up more quickly while the outboard strips would hang loosely. The recoiler is an expanding mandrel type. The recoiler takes up the slit mults. The recoiler mandrel is fitted with an overarm device which is a shaft with separator discs which prevent interleaving of the narrower coil widths.


    The position of the discs are directly in-line with the slitting knives. The finished slit mults are banded on the outside diameter and are pushed off of the recoiler mandrel onto an awaiting coil car or turnstyle.


    • The thickness can range from the thinnest down to 0,10 mm, to the thickest up to 3 mm
    • Strip Width, from the narrowest 400 mm to the widest 2200 mm
    • Coils Weight, up to 30 tons
    • Line Speed, up to 300 m/min.
    • Operator Safety.
    • Highest Production Outcome
    • Ease of Operation and Maintenance
    Model No.RS0.2-1.8RS0.3-3.0RS0.8-4.0
    Coil MaterialCR Coils , HR Coils, S.S Steel Coils, GI Coils ,AL Coils, Copper Coils Picking Oil Coils
    Coil Thickness0.2~1.8mm0.3~3.0mm0.8~4.0mm
    Line Speed0~150/300m/min0~150/300m/min0-120/200m/min
    Coil Weight≤10T(15T)≤20T(25T)≤25T(30T)
    Coil I.Dφ508mmφ508mmφ508,φ610,φ760mm
    Coil O.D≤φ1600mm≤φ2000mm≤φ2000mm
    Strip Width≥15mm≥25mm≥25mm
    Number of Strip5~158~205~15
    Slitting Accuracy±0.1mm±0.15mm±0.25mm
    Blade shaftФ220mmФ240mmФ240mm
    Electrical Control SystemPLC Automatic controlPLC Automatic controlPLC Automatic control
