450 KW Sheet Metal Slitter , Steel Sheet Slitting Machine
380V/50Hz/3Ph Long Durable
Metal Slitting Line Benifits

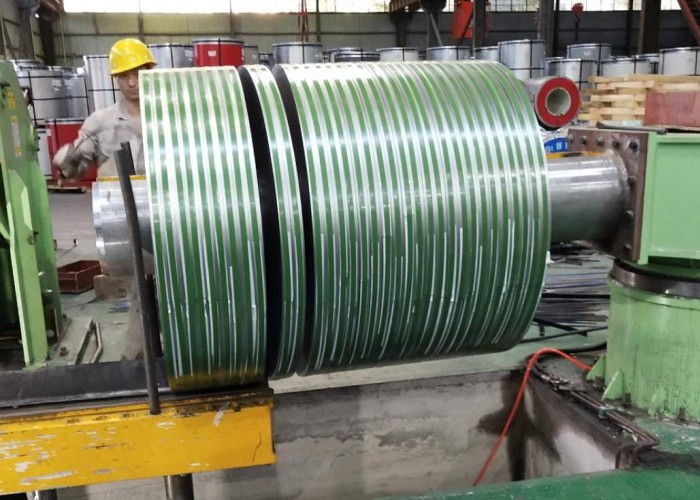

Slitting is also a shearing process, but rather than making cuts at
the end of a workpiece like shearing, slitting us used to cut a
wide coil of metal into a number of narrower coils as the main coil
is moved through the slitter. During the slitting process, the
metal coil passes lengthwise through the slitter's circular blades.
Slitting can be used equally well for both sheet or coil rolls.
Slitting blades are designed depending on the job required. The
three critical determinants of the blade configuration include:
- The workpiece material thickness
- The type of material to be slit
- The tolerances that must be held while slitting.
- High availability
- Low operating costs
- High automation level to reduce non-productive times
- Flexibility from customer-specific arrangement and design
- Separate coil preparation system
- Tool change turnstile to minimize the program change times
- Edge scrap shear with hydraulically operated knife heads in tapered
polygonal design for rapid knife head change
- High quality of the final product
RISHBIN provides decades of experience from numerous lines supplied
to well-known customers worldwide. Many years of experience in the
design, manufacture and commissioning sectors demonstrate our
expertise in supplying customer-oriented solutions.
To help you achieve your own production capacity target, RISHBIN
Slitter supplies many options, such as high speed slitting, medium
speed slitting, etc. All slitters are easy to operate. They are
very reliable, steady performers for both short and long terms
running productions.
The thickness can range from the thinnest down to 3.0 mm, to the
thickest up to 20 mm
Strip Width, from the narrowest 400 mm to the widest 2500 mm
Coils Weight, up to 35 tons
Line Speed, up to 60 m/min.
Metal Slitting Line Specification:
| Model No. | RS 3.0-12.0 | RS 4.0-16.0 | RS 6.0-20.0 |
| Coil Material | CR Coils , HR Coils, S.S Steel Coils, GI Coils, AL Coils, Copper
Coils Picking Oil Coils |
| Coil Thickness | 3.0～12.0mm | 4.0～16.0mm | 6.0～20.0mm |
| Line Speed | 0～60m/min | 0～50m/min | 0-50m/min |
| Coil Weight | ≤30T(35T) | ≤30T(35T) | ≤30T(35T) |
| Coil I.D | φ508,φ610,φ760mm | φ508,φ610,φ760mm | φ508,φ610,φ760mm |
| Coil O.D | ≤φ2200mm | ≤φ2500mm | ≤φ2500mm |
| Strip Width | ≥100mm | ≥100mm | ≥100mm |
| Number of Strip | 5～20 | ≤5 | ≤5 |
| Slitting Accuracy | ±1.0mm | ±1.0mm | ±1.0mm |
| Blade shaft | Ф320 | Ф340mm | Ф360mm |
| Electrical Control System | PLC Automatic control | PLC Automatic control | PLC Automatic control |
| COIL/ROLL DETAILS | Material | HR, CR, SS, GI, PPGI, |
| Tensile Strength | δb≤550Mpa,δS≤260Mpa |
| Coil/Roll thickness | 6-20mm |
| Steel Coil/Roll width | 600-2500(Max) |
| Coil/Roll I.D | Φ500-760 mm |
| Coil/Roll O.D | Φ2500mm(Max) |
| Steel Coil/Roll Weight | 35T(Max) |
Slitter parameters | knife pivot diameter | Ф360 mm |
| Knife pivot material | 40Cr |
| Blades specification | Φ360mmXφ360mmX20mm |
| Blade material | 6CrW2Si |
| Max slit quantity | 4 pcs (16mm) 8 pcs(8mm)(Customized) |
| Width precision | ≤±0.05mm/2M |
Other parameters | Power | 380V/50Hz/3Ph(Customized) |
| Line speed | 0-60m/min |
| Capacity | 450 KW |
| Whole line Dimension | 45m(L)X10m(W) |
|
| Line direction | From right to left(Face to machine) |
| Machine color | Blue |
