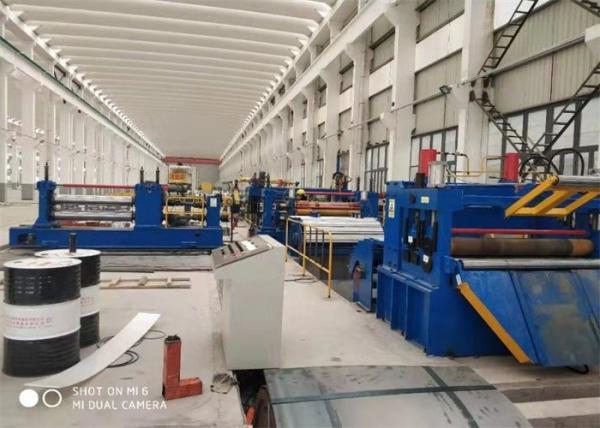

    Hot Rolled Steel Hydraulic Material Metal Slitter Machine Pipe Blade Shaft Ф300mm

    Hot Rolled Steel Hydraulic Material Slitting Machine Pipe Blade Shaft Ф300mm

    Components:

    Without a tension stand, the slit material from the center of the master coil would take up more quickly while the outboard strips would hang loosely. The recoiler is an expanding mandrel type. The recoiler takes up the slit mults. The recoiler mandrel is fitted with an overarm device which is a shaft with separator discs which prevent interleaving of the narrower coil widths.


    The position of the discs are directly in-line with the slitting knives. The finished slit mults are banded on the outside diameter and are pushed off of the recoiler mandrel onto an awaiting coil car or turnstyle.


    Steel Sheet Slitting Machine Characteristic features

    • Fully automatic strip threading systems
    • Special braking units for strips with high surface finish
    • Non-contact braking strips for the aluminum industry
    • Automatic knife change
    • Knife arbors with quadruple radial precision bearings
    • Automatic clamping and unclamping of the cutting tools on the knife arbor
    • Automatic strip strand transfer systems

    Steel Sheet Slitting Machine Specification
    Model No.RS 1.0-6.0RS 2.0-8.0RS 3.0-10.0
    Coil MaterialCR Coils , HR Coils, S.S Steel Coils, GI Coils , AL Coils, Copper Coils Picking Oil Coils
    Coil Thickness1.0~6.0mm2.0~8.0mm3.0~10.0mm
    Line Speed0~110m/min0~50/80m/min0-30/50m/min
    Coil Weight≤30T(35T)≤30T(35T)≤30T(35T)
    Coil I.DΦ508,φ610,φ760mmΦ508,φ610,φ760mmφ508,φ610,φ760mm
    Coil O.D≤φ2200mm≤φ2200mm≤φ2200mm
    Strip Width≥30mm≥50mm≥70mm
    Number of Strip4~155~205~18
    Slitting Accuracy±0.3mm±0.3mm±0.3mm
    Blade shaftФ260mmФ280mmФ300mm
    Electrical Control SystemPLC Automatic controlPLC Automatic controlPLC Automatic control

    Customized slitting lines for every different kind of metal strip and in all required dimensions would be available.

    Steel Sheet Slitting Machine Main Technical Specifications

    COIL/ROLL DETAILSMaterialHR, CR, SS, GI, PPGI, Copper
    Tensile Strengthδb≤600Mpa,δS≤360Mpa
    Coil/Roll thickness1-10mm
    Steel Coil/Roll width500-2200(Max)
    Coil/Roll I.DΦ500-760 mm
    Coil/Roll O.DΦ2000mm(Max)
    Steel Coil/Roll Weight35T(Max)



    Slitter parameters

    knife pivot diameterФ220 mm
    Knife pivot material40Cr
    Blades specificationΦ220mmXφ360mmX20mm
    Blade material6CrW2Si
    Max slit quantity4 pcs (4mm) 20 pcs(1mm)
    Width precision≤±0.05mm



    Other parameters

    Power380V/50Hz/3Ph(Customized)
    Line speed0-80m/min
    Capacity360 KW
    Whole line Dimension45m(L)X10m(W)
    Line directionFrom right to left(Face to machine)
    Machine colorBlue
